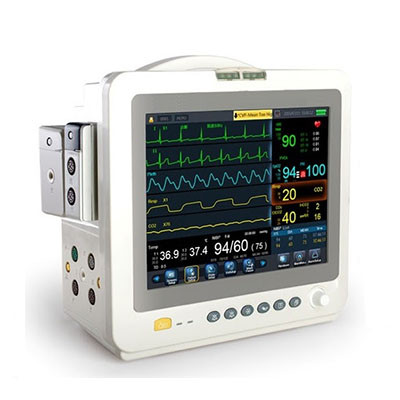

AM-800D Modular Patient Monitor

Features

• Integrated Plug in Modular, 12.1” colorful and clear TFT display
• Standard 6 parameters and optional single plug-in parameter box
• Touch screen available; able to be operated by keyboard or optional mouse
• With durable trim knob and backlight silicone buttons
• Simultaneously display at least 10 parameters, 13 kinds of arrhythmia analysis
• ECG Waveforms of 7-lead displayed simultaneously.
• Assist to judge the heart activity directly
• 15 kinds of drug dose calculations
• Anti-electrosurgical, anti-defibrillation, suitable for monitoring critical care
• Trend interface, OxyCRG interface, BigFont interface
• Built-in detachable rechargeable lithium battery, battery life 4.5 hours
• 1000 hours trend data and trend graphs, 48 hours full waveform reviewing
• Power failure data store
• High capacity of information storage
• NIBP dual overpressure protection
• Wired/wireless connection, with system supporting 3 display screens
• Supporting SD card, 4 USB interfaces
• Omni-directional visible design; 3 levels of audible, visual and audio alarm; dual alarm lights for physiological and technical alarm

Technical specification

ECG

• Lead Mode: 5 Leads (R, L, F, N, C or RA, LA, LL, RL, V)
• Lead selection: I, II, III, avR, avL, avF, V,
• Waveform: 2 ch
• Lead mode: 3 Leads (R, L, F or RA, LA, LL)
• Lead selection: I, II, III,
• Waveform: 1 ch
• Gain: ‘2.5mm/mV, ‘5.0mm/mV, ‘10mm/mV, ‘20mm/mV, auto

Heart Rate

• Range
  • Adult: 15 ~ 300 bpm
  • Neo/Ped: 15 ~ 350 bpm
• Accuracy: ± 1% or ± 1bpm, which great
• Resolution: 1 bpm
• Sensitivity: > 200 (uV P-P)
• Differential Input Impedance: > 5 MΩ
• CMRR
  • Monitor: > 105 dB
  • Operation: > 105 dB
  • Diagnosis: > 85 dB
• Electrode offset potential: ±300mV
• Leakage Current: < 10 uA
• Baseline Recovery: < 3 S after Defi.
• ECG Signal Range: ±8 m V (Vp-p)
• Bandwidth
  • Surgery: 1 ~ 15 Hz
  • Monitor: 0.5 ~ 35 Hz
  • Diagnostic: 0.05 ~ 100 Hz
• Calibration Signal: 1 (mV p-p), Accuracy: ±5%
• ST Segment Monitoring Range: Measure and Alarm -2.0 ~ +2.0 mV
• ARR Detecting
• Type: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
• Alarm: Available
• Review: Available

Respiration

• Method: Impedance between R-F (RA-LL)
• Differential Input Impedance: >2.5 MΩ
• Measuring Impedance Range: 0.3~5.0Ω
• Base line Impedance Range: 0 – 2.5 KΩ
• Bandwidth: 0.3 ~ 2.5 Hz
• Resp. Rate
• Measuring and Alarm Range
  • Adult: 0 ~ 120 rpm
  • Neo/Ped: 0 ~ 150 rpm
• Resolution: 1 rpm
• Accuracy: ±2 rpm
• Apnea Alarm: 10 ~ 40 S

NIBP

• Method: Oscillometric
• Mode: Manual, Auto, STAT
• Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90,
• 120, 180, 240,480 (Min)
• Measuring Period in STAT Mode: 5 Min
• Pulse Rate Range: 40 ~ 240 bpm
• Alarm Type: SYS, DIA, MEAN
• Measuring and alarm range
•   Adult Mode
  • SYS: 40 ~ 270 mmHg
  • DIA: 10 ~ 215 mmHg
  • MEAN: 20 ~ 235 mmHg
•   Pediatric Mode
  • SYS: 40 ~ 200 mmHg
  • DIA: 10 ~ 150 mmHg
  • MEAN: 20 ~ 165 mmHg
• Neonatal Mode
  • SYS: 40 ~ 135 mmHg
  • DIA: 10 ~ 100 mmHg
  • MEAN: 20 ~ 110 mmHg
• Resolution Pressure: 1mmHg
• Accuracy Pressure Maximum Mean error: ±5mmHg
• Maximum Standard deviation: ±8mmHg
• Overpressure Protection
  • Adult Mode: 297±3 mmHg
  • Pediatric Mode: 240±3 mmHg
  • Neonatal Mode: 147±3 mmHg

SpO2

• Measuring Range: 0 ~ 100 %
• Alarm Range: 0 ~ 100 %
• Resolution: 1 %
• Accuracy: 70% ~ 100% ±2 %; 0% ~ 69% unspecified
• Actualization interval: about 1 Sec.
• Alarm Delay: 10 Sec.

Pulse Rate

• Measuring and Alarm Range: 20~300bpm
• Resolution: 1bpm
• Accuracy: ±2bpm

Temperature

• Channel: 2
• Measuring and Alarm Range: 0 ~ 50 °C
• Resolution: 0.1°C
• Accuracy: ±0.1°C
• Actualization interval: about 1 Sec.
• Average Time Constant:<10 Sec.

Configuration

• Standard: ECG, RESP, NIBP, SPO2, PR, TEMP
• Optional Function: Recorder, 2-IBP, VGA, ETCO2, AG (Anesthesia Gas), CO (Cardiac Output), Touch Screen, WIFI, Central Monitoring System.
