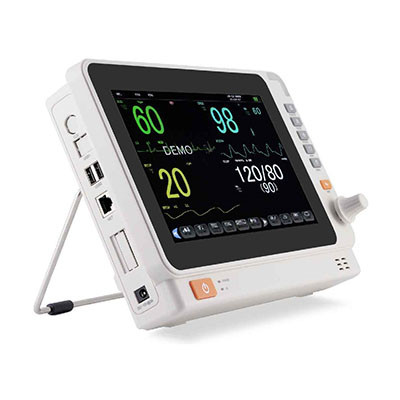

AM-8000S Patient Monitor

Features

• 10.1-inch Six Standard parameters: ECG, RESP, NIBP, SPO2, 2_TEMP, PR/HR
• 13 Type Arrhythmic Analysis, Multi_Lead ECG Waveforms Display in Phase, Real time S_T segment analysis, pacemaker detection Drug calculation and titratiotable;
• Efficient resistance to interference of defibrillator and electrosurgical cautery;
• SPO2 can testing for 0.1% Weak;
• RA-LL impedance Respiration;
• Trend Coexist Display;
• OxyCRG DyNamic View Display;
• Bed to Bed view Display;
• Networking capacity and nurse calling system;
• Options of IBP, EtCO2, Central Monitoring System;
• Built-in rechargeable battery 4400mAh;
• 10.1″ high resolution color TFT LCD display;
• Large volume of tabular and graphic trends information storage and easy to recall;
• Anti-ESU, anti- defibrillator;
• Capture dynamic waveforms.

Technical Specification

ECG

• Lead Mode: 5 Leads (R, L, F, N, C or RA, LA, LL, RL, V)
• Lead selection: I, II, III, avR, avL, avF, V,
• Waveform: 2 ch
• Lead mode: 3 Leads (R, L, F or RA, LA, LL)
• Lead selection: I, II, III,
• Waveform: 1 ch
• Gain: ‘2.5mm/mV, ‘5.0mm/mV, ‘10mm/mV, ‘20mm/mV, auto

Heart Rate and Alarm

• Range
• Adult: 15 ~ 300 bpm
• Neo/Ped: 15 ~ 350 bpm
• Accuracy: ± 1% or ± 1bpm, which great
• Resolution: 1 bpm
• Sensitivity: > 200 (uV P-P)
• Differential Input Impedance: > 5 MΩ
• CMRR
  • Monitor: > 105 dB
  • Operation: > 105 dB
  • Diagnosis: > 85 dB
• Electrode offset potential: ±300mV
• Leakage Current: < 10 uA
• Baseline Recovery: < 3 S after Defi.
• ECG Signal Range: ±8 m V (Vp-p)
• Bandwidth
  • Surgery: 1 ~ 15 Hz
  • Monitor: 0.5 ~ 35 Hz
  • Diagnostic: 0.05 ~ 100 Hz
• Calibration Signal: 1 (mV p-p), Accuracy: ±5%
• ST Segment Monitoring Range: Measure and Alarm -2.0 ~ +2.0 mV
• ARR Detecting
• Type: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
• Alarm: Available
• Review: Available

Respiration

• Method: Impedance between R-F (RA-LL)
• Differential Input Impedance: >2.5 MΩ
• Measuring Impedance Range: 0.3~5.0Ω
• Base line Impedance Range: 0 – 2.5 KΩ
• Bandwidth: 0.3 ~ 2.5 Hz
• Resp. Rate
• Measuring and Alarm Range
• -Adult: 0 ~ 120 rpm
• -Neo/Ped: 0 ~ 150 rpm
• Resolution: 1 rpm
• Accuracy: ±2 rpm
• Apnea Alarm: 10 ~ 40 S

NIBP

• Method: Oscillometric
• Mode: Manual, Auto, STAT
• Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90,
• 120, 180, 240,480 (Min)
• Measuring Period in STAT Mode: 5 Min
• Pulse Rate Range: 40 ~ 240 bpm
• Alarm Type: SYS, DIA, MEAN
• Measuring and alarm range
•   Adult Mode
  • SYS: 40 ~ 270 mmHg
  • DIA: 10 ~ 215 mmHg
  • MEAN: 20 ~ 235 mmHg
•   Pediatric Mode
  • SYS: 40 ~ 200 mmHg
  • DIA: 10 ~ 150 mmHg
  • MEAN: 20 ~ 165 mmHg
• Neonatal Mode
  • SYS: 40 ~ 135 mmHg
  • DIA: 10 ~ 100 mmHg
  • MEAN: 20 ~ 110 mmHg
• Resolution Pressure: 1mmHg
• Accuracy Pressure Maximum Mean error: ±5mmHg
• Maximum Standard deviation: ±8mmHg
• Overpressure Protection
  • Adult Mode: 297±3 mmHg
  • Pediatric Mode: 240±3 mmHg
  • Neonatal Mode: 147±3 mmHg

SpO2

• Measuring Range: 0 ~ 100 %
• Alarm Range: 0 ~ 100 %
• Resolution: 1 %
• Accuracy: 70% ~ 100% ±2 %; 0% ~ 69% unspecified
• Actualization interval: about 1 Sec.
• Alarm Delay: 10 Sec.
• Pulse Rate
• Measuring and Alarm Range: 20~300bpm
• Resolution: 1bpm
• Accuracy: ±2bpm

Temperature

• Channel: 2
• Measuring and Alarm Range: 0 ~ 50 °C
• Resolution: 0.1°C
• Accuracy: ±0.1°C
• Actualization interval: about 1 Sec.
• Average Time Constant:<10 Sec.

IBP (optional)

• Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2
• Measuring and alarm range
• -ART: 0 ~ 300 mmHg
• -PA: -6 ~ 120 mmHg
• -CVP/RAP/LAP/ICP: -10 ~ 40 mmHg
• -P1/P2: -10 ~ 300 mmHg
• Press Sensor
• Sensitivity: 5 uV/V/mmHg
• Impedance: 300-3000Ω
• Resolution: 1 mmHg
• Accuracy: ±2% or ±1mmHg, which great
• Actualization interval: about 1 Sec

Standard Packing List

• 5-lead ECG cable (including RESP)
• Adult finger SpO2 sensor
• Adult NIBP cuff
• NIBP extension tube
• TEMP sensor
• AC power adaptor
• ECG electrodes
• Operation instruction

Optional Function

IBP, EtCO2, Central Monitoring System
