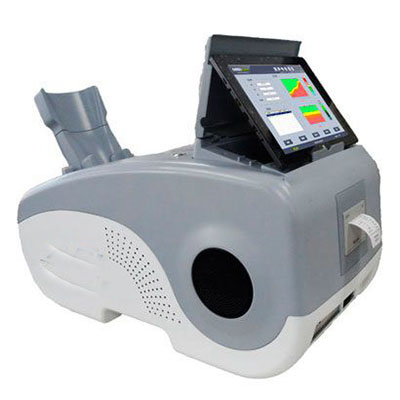

Ultrasound Bone Densitometer AM-ABD-3000+
Working Principle And Scope
Working principle: The ultrasound probe transmits ultrasound waves to the ultrasound probe, and the ultrasound wave penetrates the heel of the tested person to reach another ultrasound transducer. Because the ultrasound wave is transmitted through different bones and the ultrasound velocity and attenuation are different, through calculate SOS, BUA, T-Score and Z-Score, and use screen or printer to display. Finally, the doctor can make conclusion according to the measure data.
Working scope: Ultrasound was used to measure calcaneus.
14 people are viewing this product right now
Specification
- Measurement parameters QUS
- Measurement parts Calcaneal Bone
- Measurement Time 15 seconds – 25 seconds
- Ultrasound Parameter BUA (Broadband Ultrasound Attention)
- SOS (Speed of Sound)
- BMD/BQI (Calcaneal Bone Parameters)
- Diagnosing Parameter SOS, BUA, BQI, BMI, T-Score, Z-Score
- Operating temperature 17-36°C
- Humidity 0-80%R.H
- Electrical Power Requirement: AC 100-240V,50/60HZ
Host Machine Component
| NAME | MAIN PURPOSE |
| Base and cover | The structure and appearance of equipment |
| Switching power and control panel | Hardware circuit, signal acquisition, processing, interface |
| Ultrasound probe | Transmitting and receiving ultrasound signals |
| Oil balloon | The internal filling oil ensure ultrasound coupling |
| Leg plate (foot plate) | Fix leg position |
| Foot pedal | Fix foot position |
| Power indicator | Showing the working state of the equipment |
Comparison Table
| MODEL | ABD-3000 | ABD-3000+ |
| Probe | Fixed | Auto Adjustment |
| Built-in printer | No | Yes |
| USB Interface | One | Two |
| Charging port | No | Yes |
| Subject Group | Adult | Adult+Child |
| Touch Panel computer | No | Yes |
