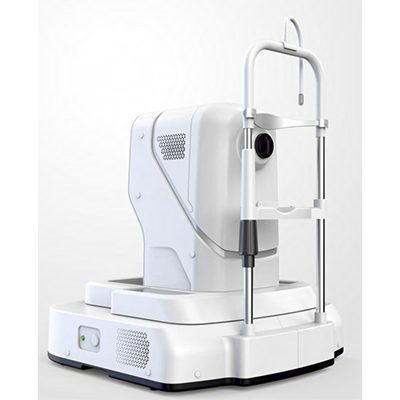

Optical Coherence Tomography AM-OCT2030
Features
- Simple, speedy, and easy to operate. Meet the basic clinical needs of OCT.
- It’s an ophthalmic optical coherence tomography scanner tailored for rapid screening of fundus diseases in outpatient clinics.
- It’s equipped with professional analysis software to meet the requirements of OCT in the clinical examination and analysis of ophthalmology.
10 people are viewing this product right now
Technical Specifications
| PARAMETER | SPECIFICATION |
| Measurement Characteristics | Axial resolution: 6um(in tissue) |
| Horizontal resolution: 13um | |
| Scanning Characteristics | Maximum A scanning speed: 20KHz, tolerance ± 5% |
| Maximum scanning depth: 2.65mm (in tissue), tolerance ± 3% | |
| Maximum scanning range: 13mm × 13mm, tolerance ± 5% | |
| Light Source Characteristics | Center wavelength: 840nm, tolerance 士 10nm |
| Half width: 35nm, tolerance 士 5nm | |
| Optical power: ≤750uw (at the cornea) | |
| Refractive compensation range: ≥-12D~+12D | |
| Fundus Image Light Source | Center wavelength 760nm, tolerance ± 5nm |
| Optical power: ≤50uw | |
| Retinal thickness Measurement | Retinal thickness measurement tolerance: 士3%（in tissue） |
| Retinal thickness measurement repeatability: ≤2% |
