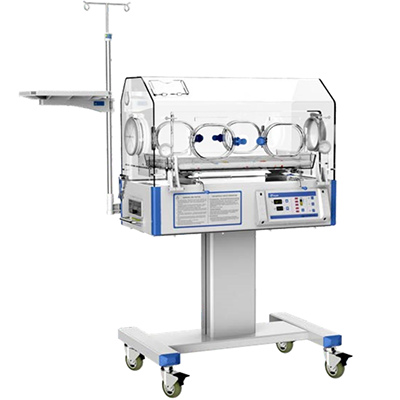

Infant Incubator AM-AI-1A

Features

1. Microprocessor based servo controlled temperature system
2. Control mode: Air mode
3. Humidity is adjustable in two grades
4. Set temperature, air temperature, heating power are displayed separately by LED
5. Self – testing function, various failure alarms by audible and visual
6. >37℃ temperature set function
7. Triple protection for over temperature with separate cut off device, more safety system
8. The inclination of infant bed is adjustable
9. Single wall hood, 4 operating windows and 2 iris ports
10. RS232 connector -Bracket with stand

Technical Specifications

Performance

Power supply: AC110/220V, 60/50Hz

Power input: 650VA

Air temperature control range: 25℃～37℃ 37.1℃～38℃

Temperature fluctuation: ±0.5℃

Uniformity of mattress temperature: ≤0.8℃

Warm-up time (from25℃): ＜30min

Internal noise level: ＜50dB(A)

Infant bed tilt angle: ±10°

Mattress size: 65cm(L)*37cm(W)

Trough capacity: 1200mL

Air filter: 0.5μm

Operating condition

Environment temperature: 20℃～30℃

Environment relative humidity: 30％～75％

Environment air velocity of flow: ＜0.3m/s

Optional Functions

LED phototherapy unit AL-3D, AL-10D
