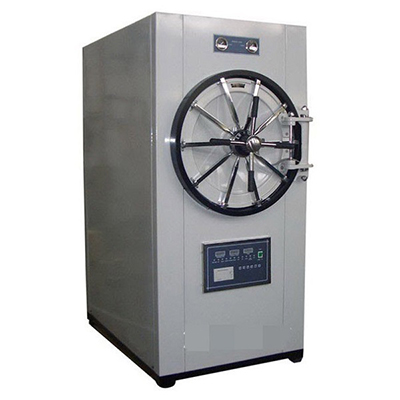

Horizontal Cylindrical Pressure Steam Sterilizer AM-WS-YDB
Characteristics
- Sterilizing course automatic sterilization controlled by computer, easy to operate.
- With drying function, suitable dressing drying.
- With over-temperature, over-pressure auto-protect device.
- The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn’t closed well.
- The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.
- The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
29 people are viewing this product right now
Technical Data
| Model technical data | WS-280YDB | WS-200YDB | WS-150YDB |
| Sterilizing chamber volume | 280L(φ600×1000mm) | 200L(φ515×1000mm) | 150L(φ440×1000mm) |
| working pressure | 0.22 MPa | ||
| working temperature | 134℃ | ||
| Adjustment of temperature | 40℃ – 134℃ | ||
| Time of sterilization | 0-99 min | ||
| Time of drying | 0-99 min | ||
| Heat average | ≤± 2℃ | ||
| Power | 12KW/380V 50Hz | 9KW/380V 50Hz | 9KW/380V 50Hz |
| Dimension | 1520×910×1900 | 1400×750×1700 | 1400×650×1600 |
| Package | 1680×1080×2100 | 1560×910×1880 | 1560×820×1820 |
| GW/NW | 570/462 KG | 436/350 KG | 430/340 KG |
