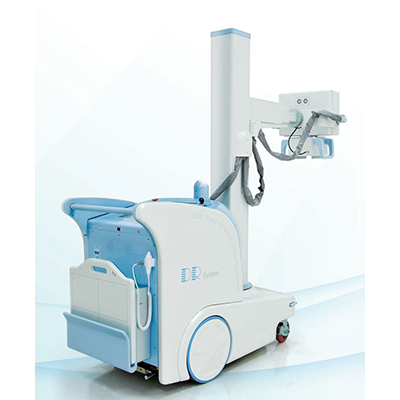

High Frequency Mobile Digital Radiography System AM-AR-5200
- Usage
This unit is high frequency combined digital X-ray radiography medical diagnostic equipment, it is used in radiography department, orthopedics, wards, emergency room, operation room, ICU, etc. It can satisfy the requirement of parts of body such as head, limbs, chest, spine, lunmer, stomach.
- Basic configuration
- High quality combined high frequency high voltage generator
- Color graphical touch LCD control system
- Panel detector with free movement
- High quality IPC
- Large size medical LCD display
- New type mobile column rack
- Symmetric adjustable, wireless ranging rotatable collimator with lamp
- Electric assistance drive system
- Cable exposure hand brake
24 people are viewing this product right now
III.X-ray generator
- 25KW compact x-ray generator;
- High frequency of 60Khz;
- With high technology to reduce the radiation;
- Unique Power supply way
- Supers capacitor to supply power in photography and durable life;
- Li-Battery to supply power in mechanical movement;
- Mechanical movement
- The horizon arm can be contracted freely;
- The pillar has the electronic up and down movement; and be rotated 360 degree;
- X-ray tube is rotary and moves left and right with 90 degree;
- Collimator can be rotated left and right with 90 degree;
- Comprehensive integration control drive
- Software
LCD touch screen operation panel to control the machine conveniently;
VII. Technical parameters
| Type | Item | Spec | |
| High frequency X-ray | Max output power | 25kW | |
| Main Inverter Frequency | 60kHz | ||
| X-ray tube | Focus | Small focus:0.6; Large focus:1.3 | |
| Rotation anode speed | 3000rpm | ||
| Heat capacity | 900kJ (1200kHU) | ||
| Tube current | 200mA | ||
| Tube voltage | 40-125kV | ||
| MAS | 0.4-360mAs | ||
| Digital image system | Digital detecotr | Detector | Amorphous silicon detector |
| scintillator | cesium iodide | ||
| View | 14″×17″ | ||
| Pixel | 3000×2400 | ||
| Max spatial resolution | 3.5Lp/mm | ||
| Pixel size | 144μm | ||
| Output gray-scale | 16bits | ||
| DQE | 75% | ||
| Workstation | Acquisition module | Gigabit nets collection | |
| Image processing model | Built-in CONTEXTVISION
GOPVIEW XR2 Enhance module, parameters chosen according to particular part |
||
| Image information management | Dicom Storage
Dicom Print Dicom transmission |
||
| Physical construction
performance |
Distance from floor to focus | Max:193cm; Min:73cm | |
| Distance from focus to pillar | Max:122cm; Min:72cm | ||
| X-ray Tube components can rotate
around the telescopic boom axis |
±90º | ||
| Collimator rotate around vertical axis | ±90° | ||
| Rotation range of pillar | 0°~360° | ||
| Power supply | 220V±10% 50/60Hz |
