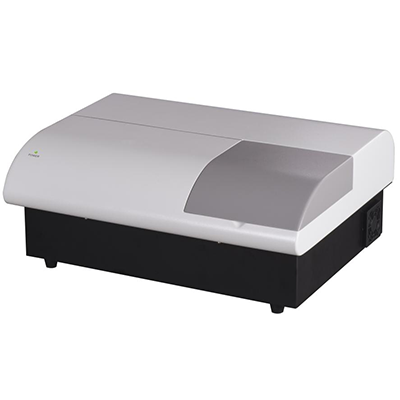

Elisha Reader AM-AR-202
Features
Windows operation interface, figure button, mouse operation
96-well plate, multiple tests in the single plate
Arrangement of Test item in Micro-plate can be store and re-use
Plate shaking, speed and time adjustable
Open system, test item and parameters can be added or modified.
Large storage for 1000 test item and 1,000,000 results
External large LCD color screen,
Printing comprehensive report,include hosiptal and patient information and test results
External computer, easy to use.
37 people are viewing this product right now
Technical Specifications
| PARAMETER | SPECIFICATION |
| Microplate types | 96-well plate(U,V,or plat-bottom) |
| Test mode | End-point, kinetic, Multi-wave analysis |
| Wavelength | 405、450、492、630nm, 4 more filters optional |
| Measurement range | 0-4.00Abs |
| Light source | Tungsten Halogen,12V/20W,>2000 hours |
| Measuring system | 8-channel optical system |
| Test mode | End-point, kinetic, Multi-wave analysis |
| Resolution | 0.001Abs（display），0.0001Abs(Inner counting ) |
| Stability | <±0.005Abs/10min |
| Sensitivity | ≥0.01L /mg |
| Linearity | r > 0.999 |
| Repeatability | < 0.3% |
| Reading speed | 5s single wavelength , 10s double wavelength |
| QC | West guard Multi-rule, automated QC alert |
| Self-Checking function | Self-checking and calibration function |
| CPU | High-speed CPU |
| Printer | External jet printer, multi-form patient report |
| Interface | RS232 interface,USB, PSTN and PC connection. |
| Power supply | 220VAC 15% or 110VAC 15%50-60Hz 100W |
| Work environment | Temp 5°C-40°C；Humi ≤85% |
| Machine Dimension | 43CM*34CM*16CM |
| Weight | 9 KG |
