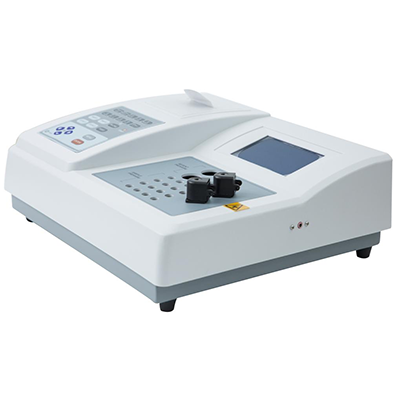

Coagulation Analyzer AM-AR-5002
Features
- Advanced scattered light principle and percentage analysis ensure accurate results.
- Low reagent consumption less than 20uL, open reagent.
- Special testing cup location system, adding sample bracket
- Optional PT Derived method for testing fibrinogen, decease the dosage of reagent
- Advanced optical light matching system ensure precision result.
- 240* 128 large LCD display.
- Memory for 10.000 testing result
- Internal thermal-sensitive printer
- Electronically-linked pipette optional.
- Perform all routine tests such as PT. APTT. TT Fibrinogen and clotting factors
- RS232 interface, PC connecting for management software
26 people are viewing this product right now
Technical Specifications
| PARAMETER | SPECIFICATION |
| Testing channels | 2 channel;2 different parameters analysis in the same time. |
| Sample pre-warming position | 16 positions |
| Reagent pre-warming position | 3 positions |
| Software timer | 2 |
| Test wavelength | 470nm |
| Sample consume | 20uL-40ul |
| Reagent consume | 20uL-40uL |
| Temp control precision | 37±0.3°C |
| Repeatability | Cv < 2% |
| Coincidence indicator | ≤3% |
| Memory | 10000 test result |
| Notation of Result | S, %, PTR, INR, g/L |
| Operation language | English |
| Power supply | 220VAC±15% 50-60Hz |
| Temperature | 15°C-30°C wet≤90% |
| Packing size/G.W | 370mm(L)×370mm(W)×120mm(H),8Kg |
Usual Test List
Prothrombin PT
Activated Partical Thromboplastintime APTT
Thrombin Time TT
Fibrinogen FIB
RT, VT,VIII, IX,XI, XII,II, V, VII, X, PS, PC, Xa,etc
