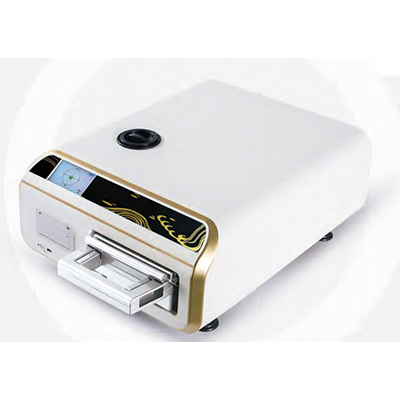

Cassette Type Sterilizer AM-N Series
Product Instruction
Digital Cassette Sterilizer is a fully automatic rapid sterilization equipment that uses pressure steam as a medium. Suitable for sterilization of medical devices that can withstand steam pressure, such as dental handpieces, ophthalmic precision instruments, dental rigid endoscope and surgical instrument, etc.
45 people are viewing this product right now
Features
Rapid:
The entire process takes only 9-12 minutes. Applicable to continuous surgery to improve clinical work efficiency.
Safety:
Reduce the heating time of sterilization equipment and extend the service life of the equipment.
Convenient:
The sterilization box can be used as a vehicle, and one machine can be equipped with multiple boxes, which is easy to operate.
Intelligent:
digital intelligent control, sterilization curve, pressure, temperature, time, status can be real-time displayed; alarm record, sterilization record can be digitally saved.
A variety of parameter output methods:
U disk storage, built-in microcomputer control system storage, standard equipped with built-in printer.
Technical Specifications
| Sterilization program | Class |
| Unwrapped instrument | N |
| Hollow unwrapped instrument 1 | S |
| Hollow unwrapped instrument 2 | S |
| Hollow wrapped instrument 1 | S |
| Hollow wrapped instrument 2 | S |
| Rubber 1 | S |
| Rubber 2 | S |
| Design pressure | 0.28Mpa |
| Temperature display accuracy | 0.1°c |
| Design temperature | 142°c |
| Cavity material | SUS304 stainless steel |
| Sterilization temperature | 121°C-134°C |
| Maximum working pressure | 0.23Mpa |
| Temperature uniformity | Range: 1.0~50.0ml, (0.1ml step) |
| Interface | ≤+0.5°C |
| Optional | USB real-time sterilization data storage |
Optional multiple sterilization racks
| Order No. | Volume | Water tank Volume | Chamber size (mm) | Dimensions
(mm) |
NW | Voltage | Frequency | Power |
| N-2L | 2L | 3L | 280x180x38 | 556x476x168 | 40KG | 220V | 50HZ | 1.3Kw |
| N-5D | 5L | 5L | 380x180x80 | 595x476x208 | 45KG | 220V | 50HZ | 1.3Kw |
| N-5DL | 5.2L | 5L | 490x180x80 | 595x476x208 | 45KG | 220V | 50HZ | 1.3Kw |
