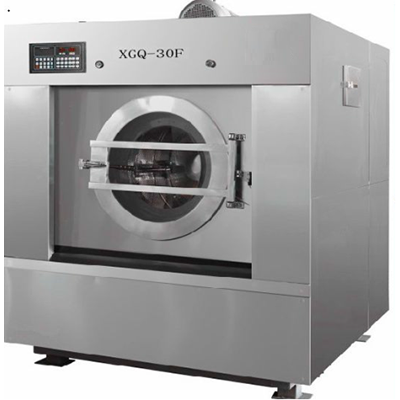

Automatic Washing Machine (Washer Extractor) AM-XGQ
Features
- Fully automatic, microcomputer-controller, freely programmable, 30 possible programs, operator could set flexible.
- High quality stainless steel, good appearance, long life.
- Full suspension shock structure, low shake, low noise, combination of shock absorbers and springs for maximum absorption, need no excessive foundations.
- Imported bearing, precise and durable.
- Fixed screws support for long-distance transportation, avoid shaking damage during transit.
- High quality inverter system, easily realize washing and extracting frequency stepless adjusting.
- Multiple sealing system, oil sealing , water sealing, stainless steel sealing.
- Built-out bearing lubrication, simple operation, convenient maintenance.
- Safety door interlock system, reduce fatigue, misuse and the risk.
23 people are viewing this product right now
Technical Specifications
| Model | XGQ25F | XGQ30F | XGQ-50F | XGQ-70F | XGQ-100F |
| Capacity (kg) | 25 | 30 | 50 | 70 | 100 |
| Drum Dimension (mm) | Φ800×545 | Φ905×500 | Φ1065×628 | Φ1200×600 | Φ1200×820 |
| Drum Volume (L) | 274 | 321 | 559 | 678 | 930 |
| Drum Speed (r/min) | 46/750 | 40/750 | 38/720 | 38/700 | 38/650 |
| Voltage (V) | 220/240/380/415/440 | ||||
| Outer Cylinder (SS304) | Fully stainless steel | ||||
| Inner Cylinder (SS304) | Fully stainless steel | ||||
| Motor Power (kw) | 3 | 4 | 5.5 | 7.5 | 7.5 |
| Inverter Power (kw) | 3.7 | 5.5 | 7.5 | 11 | 11 |
| Hot Water Pipe (inch) | 3/4 | 1 | 11/4 | 11/2 | 2 |
| Cold Water Pipe (inch) | 25mm/
65mm |
1 | 11/4 | 11/2 | 2 |
| Air Pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | |
| Dimension (mm) | 1120x1100x1600 | 1340x1360x1722 | 1640×1570×1912 | 1750×1540×2132 | 1750×1640×2132 |
| Net Weight (kg) | 700 | 1450 | 2200 | 2800 | 3100 |
