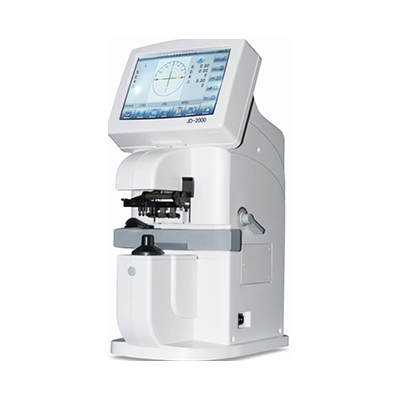

AUTO LENSMETER AM-JD-2000/2000B
Features
Tilting LCD display screen
Tilting color screen provides you with clear view from any position such as sitting and standing.
Sensitive touch LCD display screen
You just touch the screen to finish your measurement, the operation could be easier and more convenient.
Measurement menu
Easy to use with recognizable icons.
The JD-2000 series provide a user-friendly graphical interface for an immediate understanding.
Progressive measurement
A graph helps the operator to improve accuracy and speed in the measurement of near and far vision.
Automatic recognition of single and progressive lens
Hi-speed UV measurement
Just hold the lens through the sensor, the display will easily indicate the UV measurement by the progress bar.
Built-in thermal printer
Quick data print with built-in printer. Easy to reload printing paper.
Difference:
JD-2000 AUTO LENSMETER with UV and printer
JD-2000B AUTO LENSMETER without UV and printer
19 people are viewing this product right now
Technical Specifications
| Range of measurement | |
| Spherical | 0~±25D 0.01/0.12/0.25D step |
| Cylinder | 0~±9.99D 0.01/0.12/0.25D step |
| Axis | 0~180° (1° step) |
| Add | 0~+9.99D 0.01/0.12/0.25D step |
| PD | 0~15 0.01/0.12/0.25D step |
| Measurement mode | |
| Cylinder | +,+/-,- |
| Prism | X-Y, P-B |
| Contact lens | Soft/hard |
| Measuring mode | Single/progressive/ automatic recognition |
| Specification | |
| Diameter of lens | Φ20~108mm |
| PD | 40~90mm, 0.5mm step |
| Speed of measurement | 0.1s |
| Display | 7” TFT LCD |
| Printer | JD-2000: Thermal Printer
JD-2000B: No Printer |
| Dimension | JD-2000&JD-200B:196mmX286mmX442mm |
| Weight | ~6kg |
| Power supply | 100~240V 50~60Hz |
