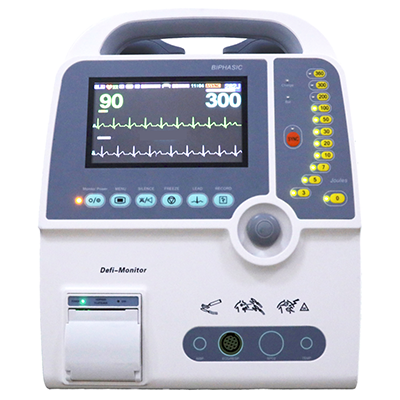

AM-DEF-8000C Defibrillator

Technical specifications

Defibrillation

• Defibrillation type             Manual, Synchronized, Asynchronized
• Output waveform              Biphasic technology
• Energy accuracy               <+1%
• Energy selection              0,3,5,7,10,20,30,50,100,200,300,360 Joule (Nominal at a resistance of 50)
• Charging time                   Maximum 10 seconds to 360 Joule
• Paddles                             Reusable external adult paddles (Pediatric paddles integrated)

Power requirements

• AC Power supply              110V, 60 Hz /220V, 50 Hz
• Vehicle Voltage                 DC 12V Li-ion battery

Internal Battery

• Battery type                         Rechargeable lithium battery
• Charging time                   Time-Minimum of 4 hours for full charging
• Battery charging                During AC Power Supply operation of the device
• Charging /Low Battery Indication      Red LED
• Battery Capacity                100% of the battery will provide 120 mins of monitoring; and 30 discharges at 360 joules

Display

• LED Dimensions         7’diagonal {155mm*88mm}
• Type                               High resolution true-color graphic LED
• Resolution                    480X234

ECG

• ECG lead: I, II, III, AVR, AVL, AVF, V1-V6, GND
• S-T segment analysis: -2.0-2.0mv
• Arrhythmia analysis: yes
• Protection: Withstand 4000vAc/50Hz voltage in isolation and work against electrosurgical interfere and defibrillation

NIBP

• Working mode: Manual/Automatic/stat (5 minutes)
• Method: Automatic oscillation
• Cuff type: standard Adult; optional Pediatric/Neonatal

Temperature

• Measurement range 20~45°C
• Resolution 0.1°C

SpO2

• Display: spo2 value, pulse histogram, waveform, pulse
• Range: 0~99%for adult, pediatric and neonatal patients
• Probe: standard adult finger clip
• Optional pediatric Y-type clip and neonatal wrap

Pulse

• Pulse range: 0-300bpm
• Pulse accuracy: ±2bpm

Built-in Recorder

• Paper: 50mm thermal.
• Printing Method: High-resolution, thermal print head.
• Record date, time sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform
• Print mode
  • HR exceed limits alarm recording
  • Auto timed recording
  • Real-Time Recording
  • Defibrillation discharge trigger recording

Standard Parameter

Biphasic Defibrillation, ECG, NIBP, TEMP, SPO2, Pulse, Recorder

Optional AED

• Adult Mode: 150J/150J/200J, 120J/120J/150J
• Children Mode: 50J/50J/75J, 30J/30J/50J
